Product Overview
Category: Self-Priming PumpsJMZ Stainless Steel Self-Priming Pump. Self-priming pumping solution for drainage and general industrial transfer. Contact Shenyin Pump for duty-point review, materials and configuration options.
- Duty-point review and pump selection support
- Outline drawings and installation instructions available
Export inquiry support
Need help selecting JMZ Stainless Steel Self-Priming Pump?
Send flow, head, medium, temperature, voltage/frequency, quantity and destination country. Our engineering team can review duty point, materials, seal type and configuration for OEM, EPC and export projects.
Technical Information
The information below is for reference. Final order data is subject to the technical agreement and product nameplate.
I. Product Overview: The JMZ type stainless steel self-priming pump (wine pump) uses a new type of mechanical seal assembly, is explosion-proof, and leak-proof for years. It is suitable for conveying various alcohols, beverages, dairy products, pharmaceuticals, gasoline, solvent oils, syrups, etc., at temperatures ranging from -35°C to +120°C.
This pump features a compact structure, simple operation, small size, light weight, stable performance, no need for a foot valve, and no need for priming during startup. After replacing 3-4 parts, this pump can be used to convey concentrated slurries, acids, alkalis, salts, and other liquids.

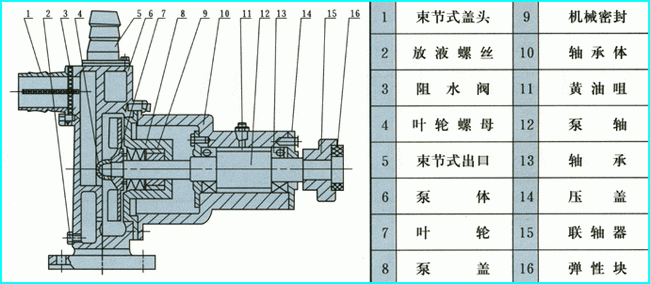

III. Product Structure

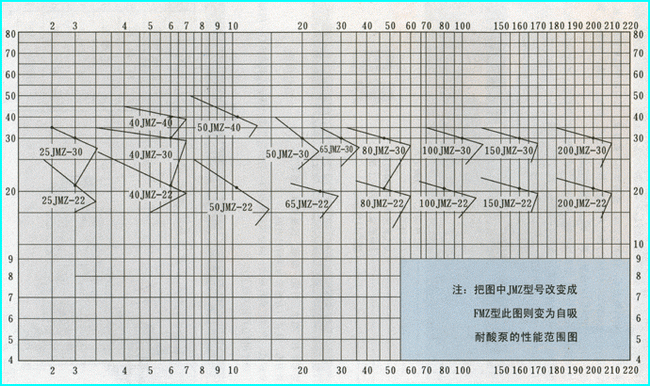

IV. Curve Diagram
Product Diagrams and Reference Images

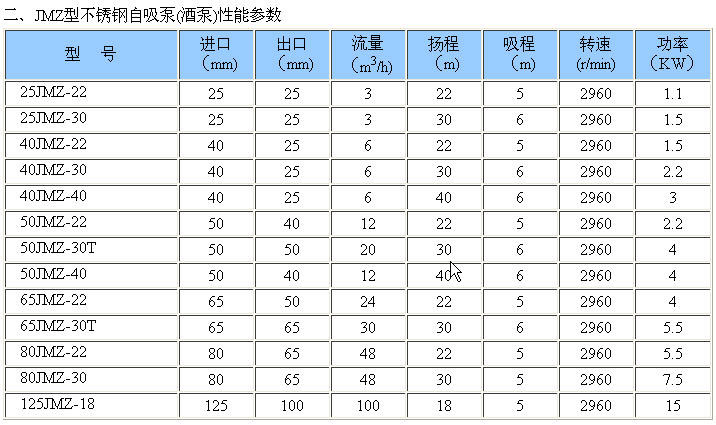

Model Designation
50JMZ-22
Inlet & outlet diameter (mm)
Stainless steel self-priming pump
Head (m)
